SERVICE INFO

선박현황

Ship Status

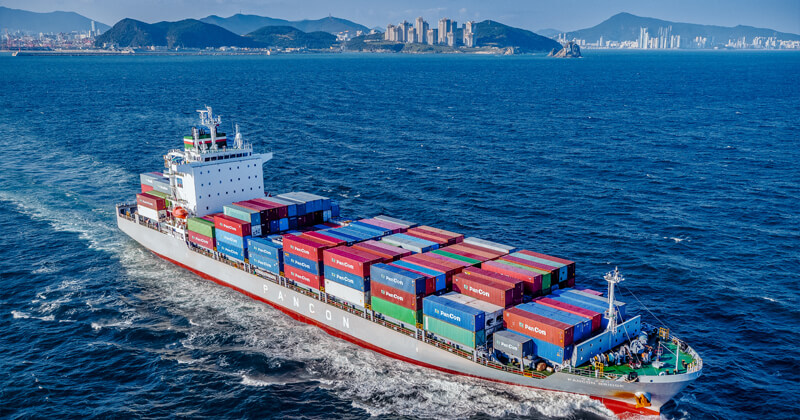

PANCON BRIDGE

  • PANCON BRIDGE

선박현황 테이블(FLAG, KOREA)
FLAG KOREA
G/T 18,040
DWT 22,426
LDT 7,014
NET 7,341
CALL SIGN D7XB
IMO NUMBER 9931721
OFFICIAL NUMBER JJR-221016
BUILT 2022.03
BUILT'S NAME HYUNDAI MIPO DOCKYARD CO., LTD
CLASS KR
L/B/D 163.50M / 27.40M / 14.30M
DRAFT 9.75M
MAIN ENGINE HYUNDAI MAN B&W 6S60ME-C10.5 11,960KW X 98.5RPM
SPEED AND CONSUMPTION AT SEA ABOUT 19.9 KNOTS AT 41.5 MT OF FO
TANK CAPACITY H.F.O 1,100 M3
M.D.O 150 M3
F.W 150 M3
D.W 100 M3
B.W 6,700 M3
CONTAINER INTAKE 1,240TEU / 14 HOMO
STOWAGE IN HOLD (558 TEU)
TTL (1,809TEU)
ON DECK (1,251 TEU)
REEFER RECEPTACLE 279 UNITS (440V)
REMARKS

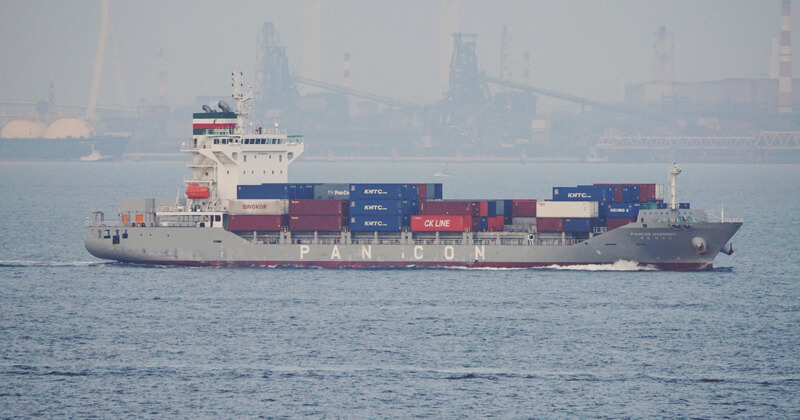

  • PANCON HARMONY

선박현황 테이블(FLAG, KOREA)
FLAG KOREA
G/T 9,946
DWT 12,272.11
LDT 4766.16
NET 4,769
CALL SIGN D7UY
IMO NUMBER 9884904
OFFICIAL NUMBER JJR-201026
BUILT 2020.10
BUILT'S NAME DAESUN SHIP BUILDING & ENGINRERING CO., LTD.
CLASS KR
L/B/D 132.87M/ 24.80M / 11.20M
DRAFT 8.214M
MAIN ENGINE HYUNDAI B&W 6S46ME-B8.5 7,448KW X 126RPM
SPEED AND CONSUMPTION AT SEA ABOUT 18.0 KNOTS AT 25.2 MT OF FO
TANK CAPACITY H.F.O 664 M3
M.D.O 78 M3
F.W 233 M3
B.W 4,534 M3
CONTAINER INTAKE 1,011 UNITS OF 20 X 8 X 8'6"
675TEU / 14 HOMO
STOWAGE IN HOLD (307 TEU)
TTL (1,011TEU)
ON DECK (704 TEU)
REEFER RECEPTACLE 100 UNITS (440V)
REMARKS

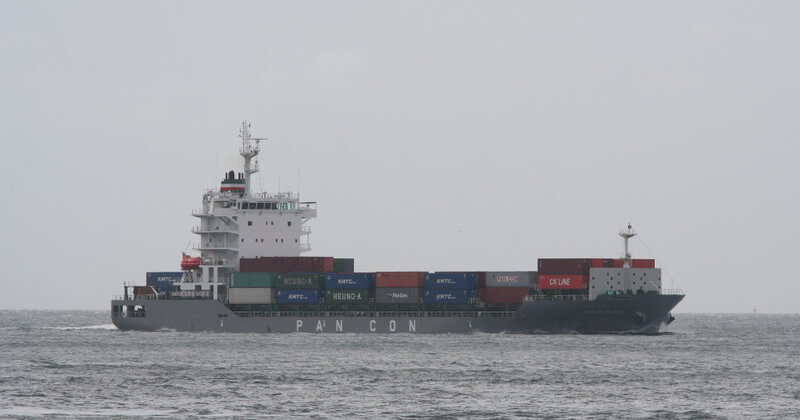

  • PANCON GLORY

선박현황 테이블(FLAG, KOREA)
FLAG KOREA
G/T 9,892
DWT 11,898
LDT 4,476
NET 4,477
CALL SIGN DSRI4
IMO NUMBER 9635418
OFFICIAL NUMBER JJR-121046
BUILT 2012.10
BUILT'S NAME HYUNDAIMIPO DOCKYARD CO., LTD.
CLASS KR
L/B/D 140.11M/ 22.70M / 11.2M
DRAFT 8.215M
MAIN ENGINE HYUNDAI B&W 6S46MC-C8.1(TierⅡ) 8,280KW X 129RPM
SPEED AND CONSUMPTION AT SEA - ABOUT 18 KNOTS AT 26,6 M/T OF IFO 28.0 + 2.52 M/T OF MDO
IN PORT - 1.77 M/T of MDO
TANK CAPACITY F.W.T 190.4 MT
B.W.T 4,672,2 MT
F.O.T 750.2 MT
D.O.T 68.3 MT
CONTAINER INTAKE 1009 UNITS OF 20 X 8 X 8'6"
630TEU / 14 HOMO
STOWAGE IN HOLD (289 TEU)
TTL (1,009TEU)
ON DECK (720 TEU)
REEFER RECEPTACLE 104 UNITS (440V)
REMARKS FITTED WITH BOW THRUSTER

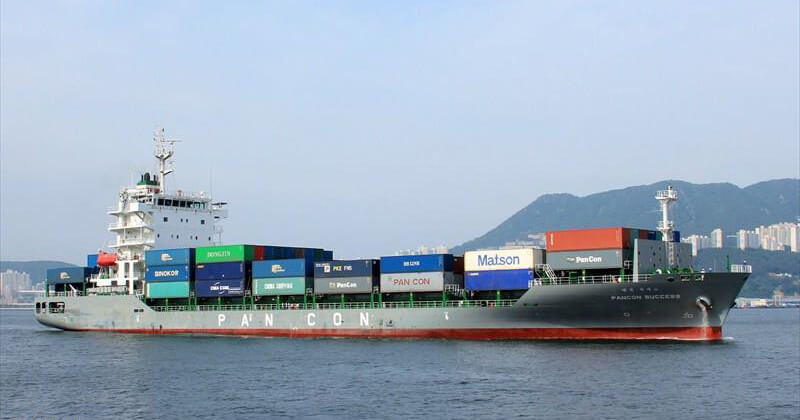

  • PANCON SUCCESS

선박현황 테이블(FLAG, KOREA)
FLAG KOREA
G/T 9,892
DWT 11,898
LDT 4,476
NET 4,477
CALL SIGN DSRI7
IMO NUMBER 9635420
OFFICIAL NUMBER JJR-121058
BUILT 2012.10
BUILT'S NAME HYUNDAIMIPO DOCKYARD CO., LTD.
CLASS KR
L/B/D 140.11M/ 22.70M / 11.2M
DRAFT 8.215M
MAIN ENGINE HYUNDAI B&W 6S46MC-C8.1(TierⅡ) 8,280KW X 129RPM
SPEED AND CONSUMPTION AT SEA - ABOUT 18 KNOTS AT 26,6 M/T OF IFO 28.0 + 2.52 M/T OF MDO
IN PORT - 1.77 M/T of MDO
TANK CAPACITY F.W.T 190.4 MT
B.W.T 4,672,2 MT
F.O.T 750.2 MT
D.O.T 68.3 MT
CONTAINER INTAKE 1009 UNITS OF 20 X 8 X 8'6"
630TEU / 14 HOMO
STOWAGE IN HOLD (289 TEU)
TTL (1,009TEU)
ON DECK (720 TEU)
REEFER RECEPTACLE 104 UNITS (440V)
REMARKS FITTED WITH BOW THRUSTER

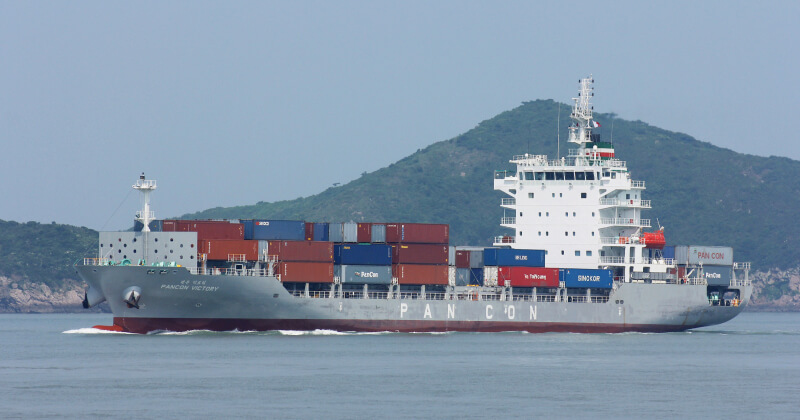

  • PANCON VICTORY

선박현황 테이블(FLAG, KOREA)
FLAG KOREA
G/T 9,923
DWT 10,073(SCANTLING 12,631)
LDT 4,822
NET 4,469
CALL SIGN D7CC
IMO NUMBER 9749116
OFFICIAL NUMBER JJR-161005
BUILT 2016.02
BUILT'S NAME HYUNDAIMIPO DOCKYARD CO., LTD.
CLASS KR
L/B/D 148.27M/ 22.70M / 11.2M
DRAFT 7.4M(SCANTLING 8.35M)
MAIN ENGINE HYUNDAI B&W 6S46ME-B8.3 6,670KW X 113RPM
SPEED AND CONSUMPTION AT SEA - ABOUT 18 KNOTS AT 23.0 M/T OF IFO 28.0 + 2.52 M/T OF MDO
IN PORT - 1.77 M/T of MDO
TANK CAPACITY F.W.T 150 CBM
B.W.T 4,300 CBM
F.O.T 650 CBM
D.O.T 60 CBM
CONTAINER INTAKE 1056 UNITS OF 20 X 8 X 8'6"
678TEU / 14 HOMO
STOWAGE IN HOLD (303 TEU)
TTL (1,056TEU)
ON DECK (753 TEU)
REEFER RECEPTACLE 210 UNITS (440V)
REMARKS FITTED WITH BOW THRUSTER

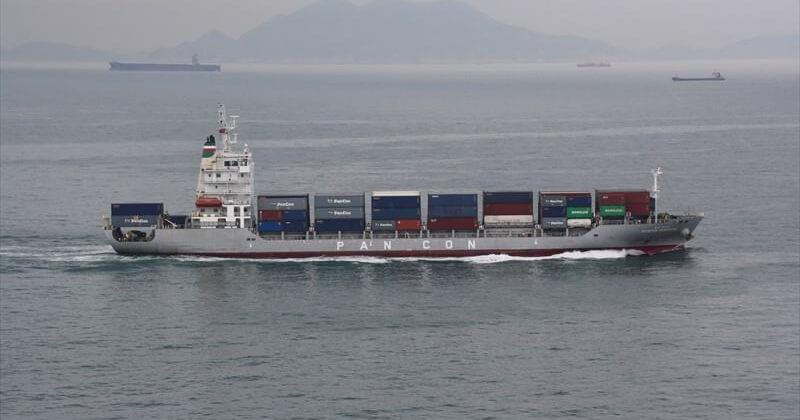

  • PANCON SUNSHINE

선박현황 테이블(FLAG, KOREA)
FLAG KOREA
G/T 9,923
DWT 10,106(SCANTLING 12,664)
LDT 4,822
NET 4,498
CALL SIGN D7CO
IMO NUMBER 9749128
OFFICIAL NUMBER JJR-161011
BUILT 2016.02
BUILT'S NAME HYUNDAIMIPO DOCKYARD CO., LTD.
CLASS KR
L/B/D 148.27M/ 22.70M / 11.2M
DRAFT 7.4M(SCANTLING 8.35M)
MAIN ENGINE HYUNDAI B&W 6S46ME-B8.3 6,670KW X 113RPM
SPEED AND CONSUMPTION AT SEA - ABOUT 18 KNOTS AT 23.0 M/T OF IFO 28.0 + 2.52 M/T OF MDO
IN PORT - 1.77 M/T of MDO
TANK CAPACITY F.W.T 150 CBM
B.W.T 4,300 CBM
F.O.T 650 CBM
D.O.T 60 CBM
CONTAINER INTAKE 1056 UNITS OF 20 X 8 X 8'6"
678TEU / 14 HOMO
STOWAGE IN HOLD (303 TEU)
TTL (1,056TEU)
ON DECK (753 TEU)
REEFER RECEPTACLE 210 UNITS (440V)
REMARKS FITTED WITH BOW THRUSTER

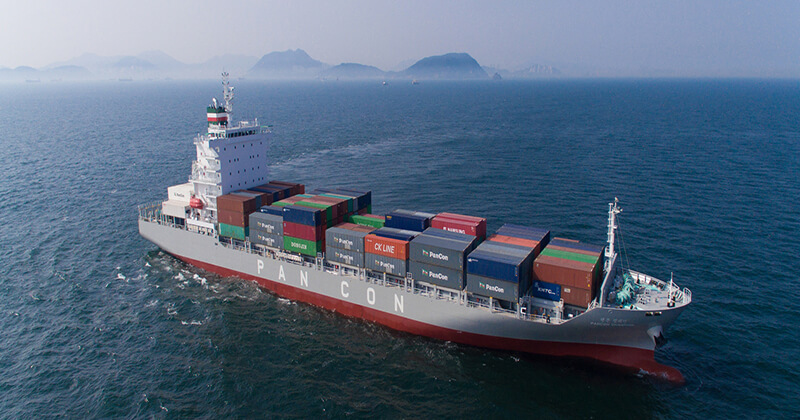

  • PANCON CHAMPION

선박현황 테이블(FLAG, KOREA)
FLAG KOREA
G/T 18,606
DWT 21,809
LDT
NET 7,638
CALL SIGN D7SP
IMO NUMBER 9802023
OFFICIAL NUMBER JJR-171028
BUILT 2017.05
BUILT'S NAME DAESUN SHIP BUILDING & ENGINRERING CO., LTD
CLASS KR
L/B/D 172.2M / 27.5M / 14.3M
DRAFT 9.75M
MAIN ENGINE B&W 6S60ME-C8.5
SPEED AND CONSUMPTION AT SEA - ABOUT 20.27 KNOTS AT 45.4MT OF FO
TANK CAPACITY H.F.O : 1,300M3
M.D.O : 130M3
F.W. : 200M3
B.W. : 8,700M3
CONTAINER INTAKE IN HOLD 551 TEU, ON DECK 1,219TEU TTL 1785TEU
STOWAGE
REEFER RECEPTACLE 250 UNITS (440V)
REMARKS

  • ISARA BHUM

선박현황 테이블(FLAG, KOREA)
FLAG KOREA
G/T 9,983
DWT 12,475
LDT 4,989.91
NET 5,421
CALL SIGN 9VLP4
IMO NUMBER 9460071
OFFICIAL NUMBER 394068
BUILT 2008
BUILT'S NAME MURAKAMI HIDE SHIPBUILDING CO, LTD.
CLASS
L/B/D 148.00M/ 23.00M/ 11.00M
DRAFT 8.13
MAIN ENGINE HITACHI ZOSEN MAN B&W - 6S50 MC-C 9,480 KW @ 127 RPM, FPP
SPEED AND CONSUMPTION AT SEA - 18.0 KTS
TANK CAPACITY M.F.O: 1,059.22 M3 M.D.O: 187.10 M3 F.W : 276.41 M3 B.W : 4,321.77 M3
CONTAINER INTAKE IN HOLD 342 TEU, ON DECK 746 TEU, TOTAL 1,088 TEU
STOWAGE
REEFER RECEPTACLE 180 POINTS
REMARKS

  • HONOR VOYAGER

선박현황 테이블(FLAG, KOREA)
FLAG KOREA
G/T 6,393
DWT 8,016
LDT 3,853
NET 3,239
CALL SIGN 3E3843
IMO NUMBER 9158757
OFFICIAL NUMBER 55694-PEXT
BUILT 1998
BUILT'S NAME KYOKUYO SHIPYARD CORPORATION - JAPAN
CLASS
L/B/D 121.60M/ 21.80M/ 8.80M
DRAFT 6.62
MAIN ENGINE MITSUBISHI 6U EC45LA, 5295 KW(7200 BHP) at 158 RPM
SPEED AND CONSUMPTION AT SEA
ABOUT 14.5 KN ABOUT 17.5 MT/DAY
ABOUT 14.0 KN ABOUT 16.5 MT/DAY
ABOUT 13.5 KN ABOUT 15.5 MT/DAY
ABOUT 13.0 KN ABOUT 14.5 MT/DAY
TANK CAPACITY M.F.O: 614.14 M3 M.D.O: 77.86 M3 F.W : 157.54 M3 B.W : 3,665.27 M3
CONTAINER INTAKE IN HOLD 201 TEU, ON DECK 433 TEU, TOTAL 634 TEU
STOWAGE
REEFER RECEPTACLE 60
REMARKS
